Here are two easy to follow diagrams for two different setups for a recharge port. The first one is a basic, no kill key direct set up. Meaning, the port does not shut off the power to the board it is simply tied in to the rechargeable battery so that you can charge it inside the hilt. These views are looking at the bottom of the recharge port. this is not the port opening.

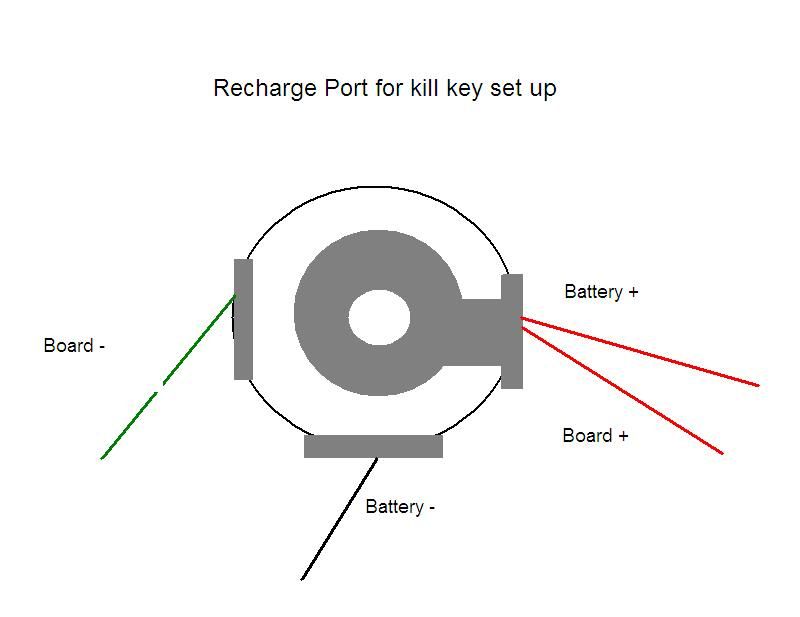

This next one is for a recharge port. It does kill the power to the board by using a "kill key" which is a plastic plug that fits in the port opening when not charging or in use.
Last Edit: Jan 4, 2012 11:27:13 GMT -5 by AmpTrooper
Post by Darkside Engineering on Feb 28, 2012 23:59:12 GMT -5
On the second diagram if anybody wanted to use a PLI they would hook the red positive of the PLI to the red on the recharge port and the black negative from the PLI to the Green terminal on the recharge port that way your PLI is only on when you pull out the kill key.
