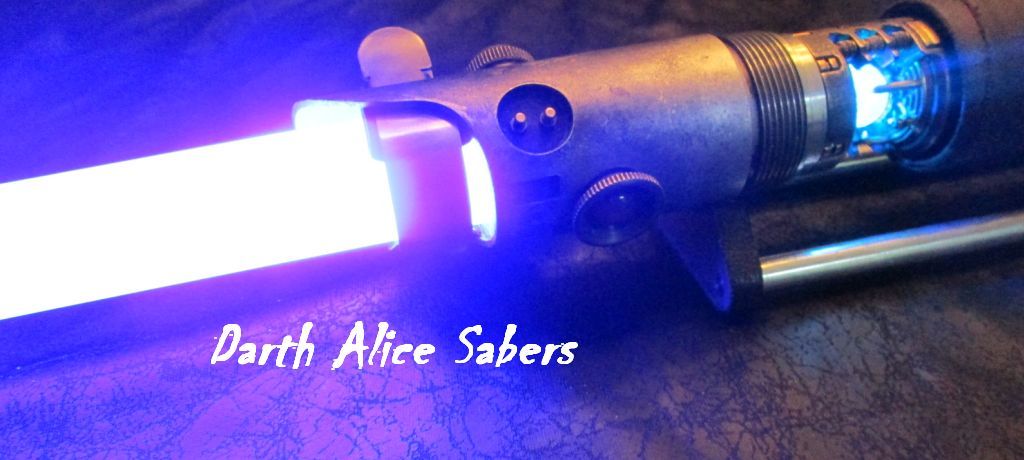

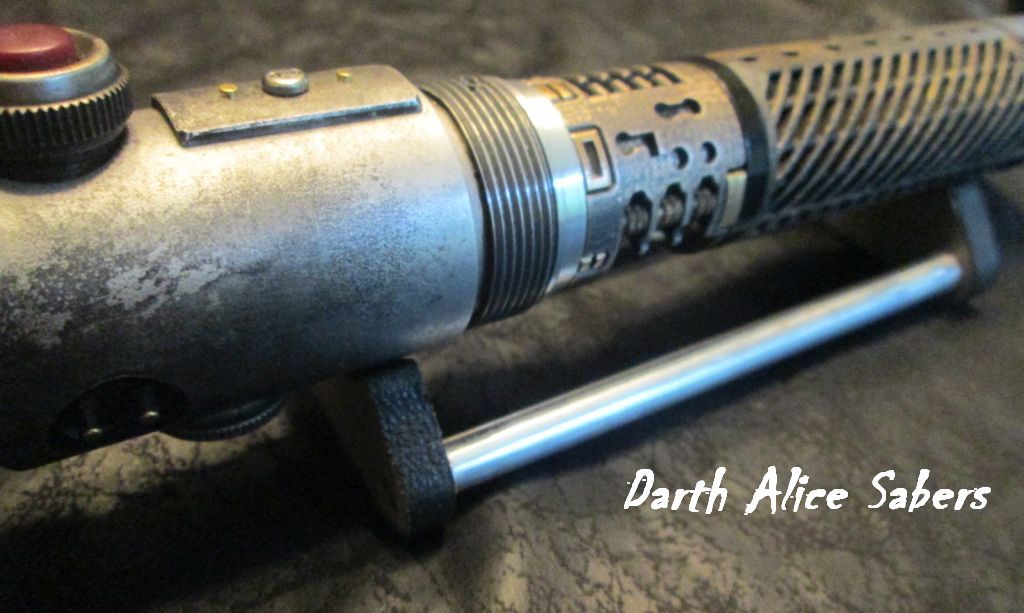

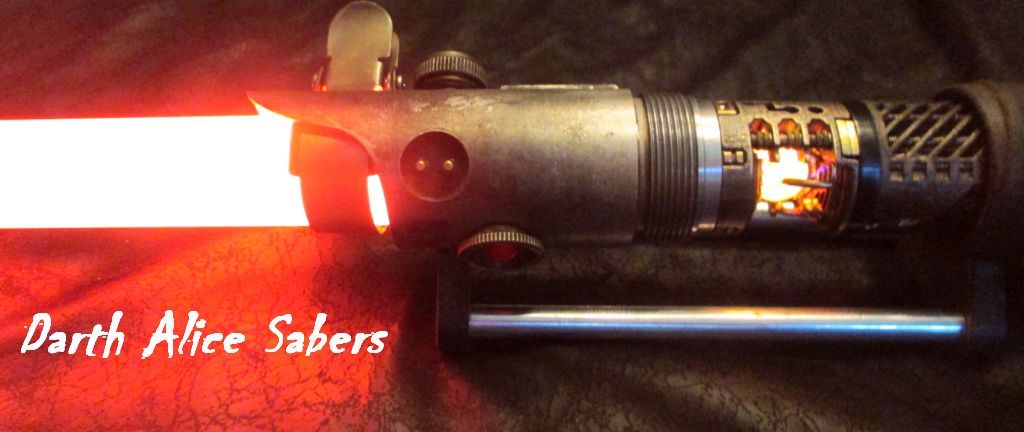

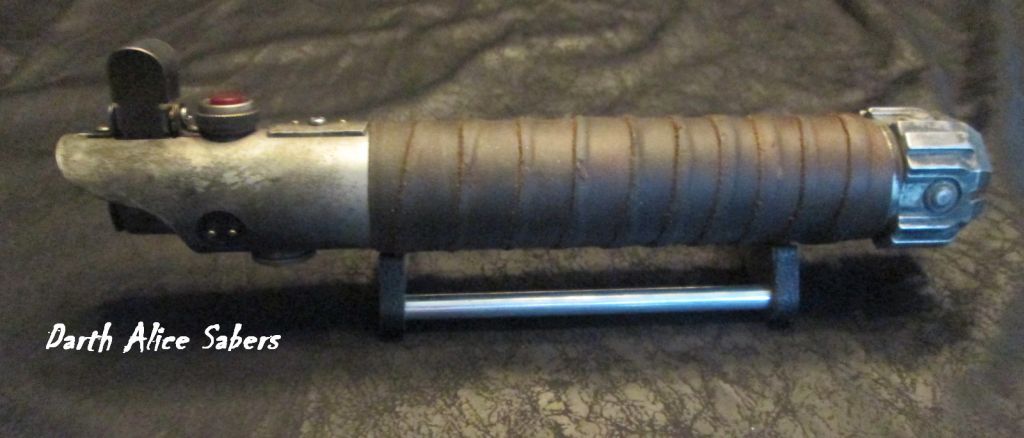

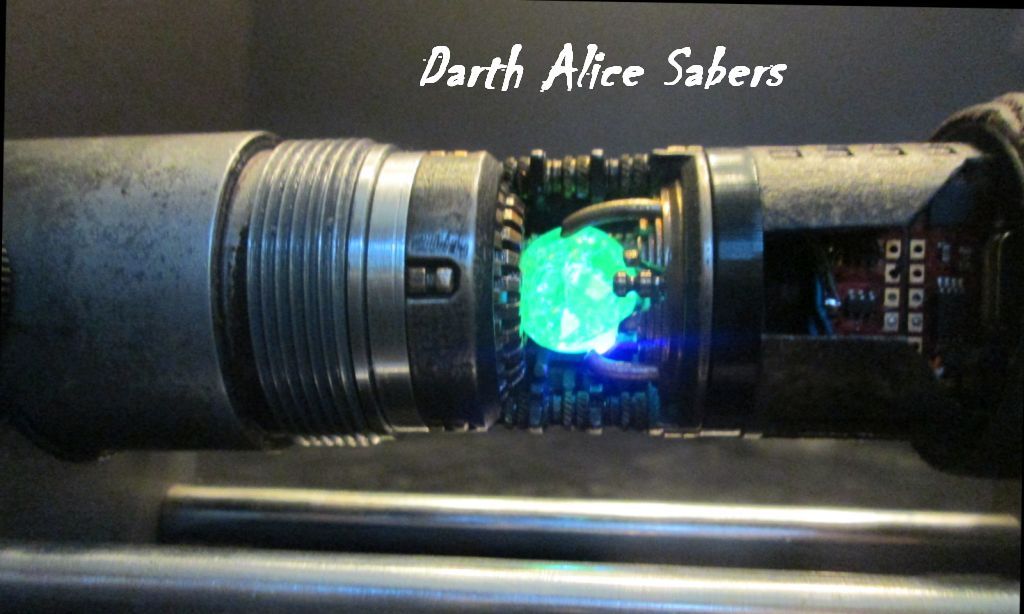

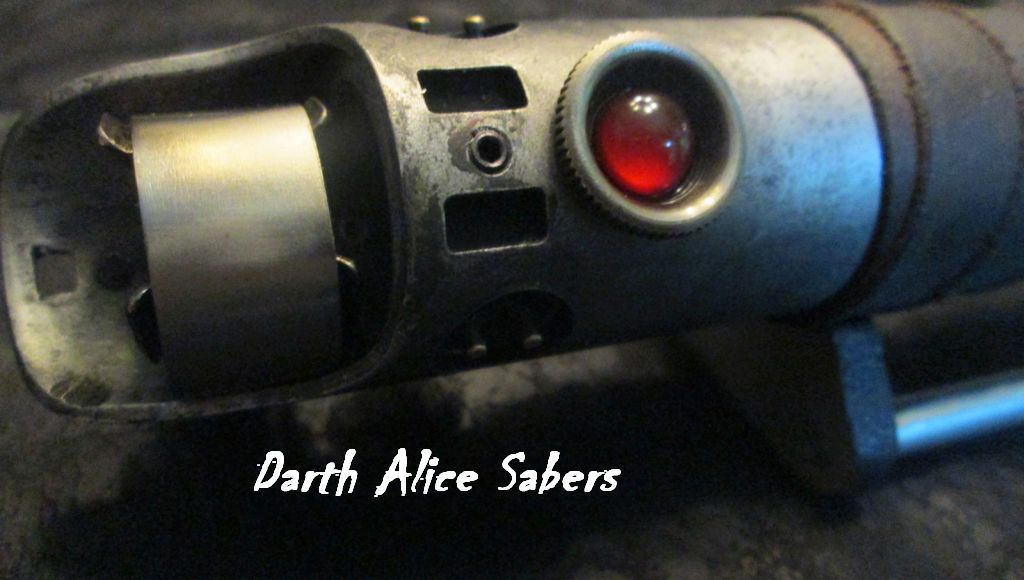

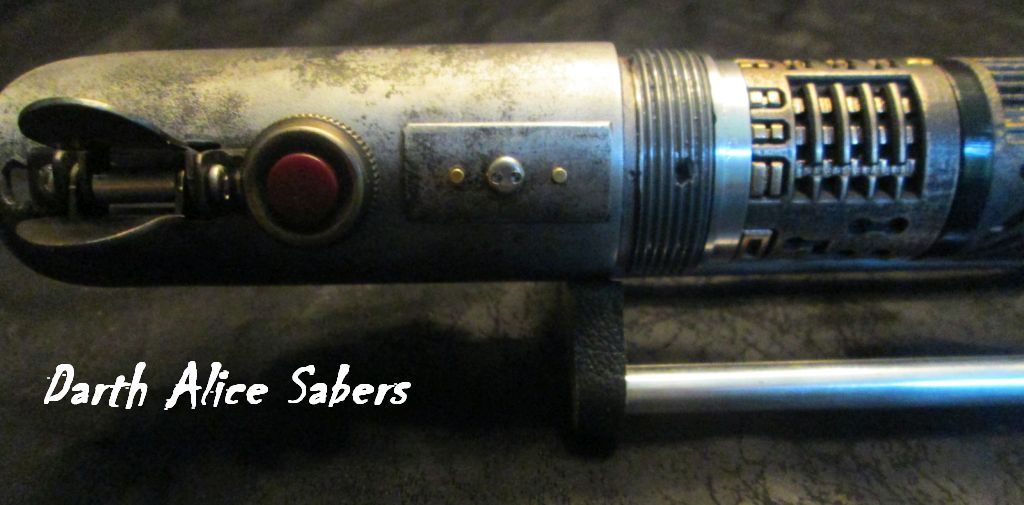

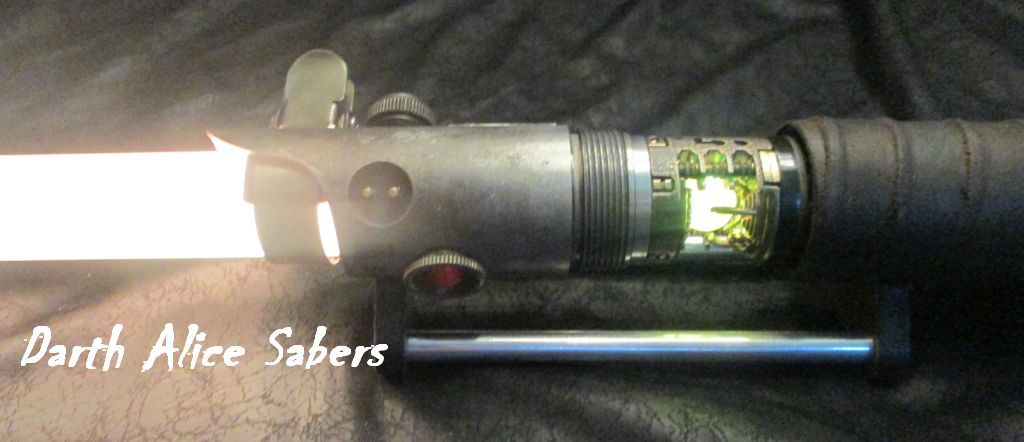

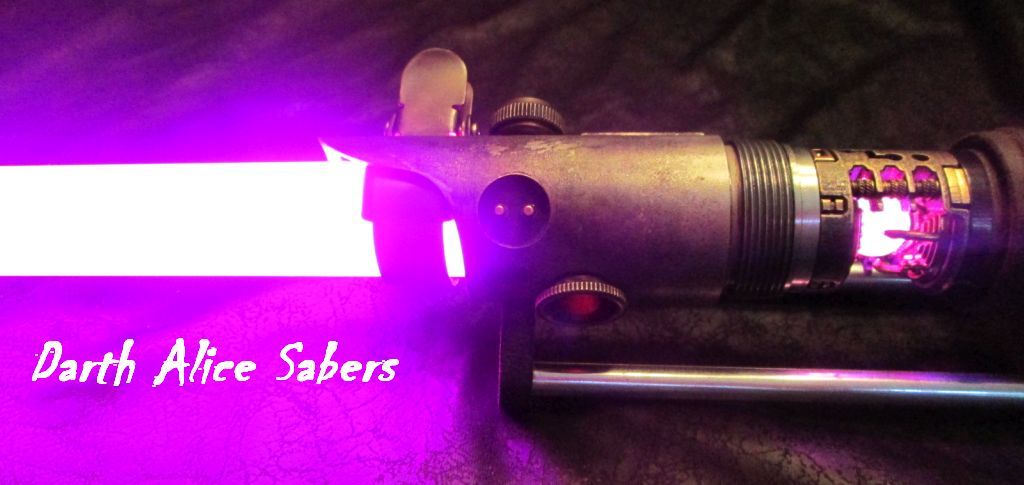

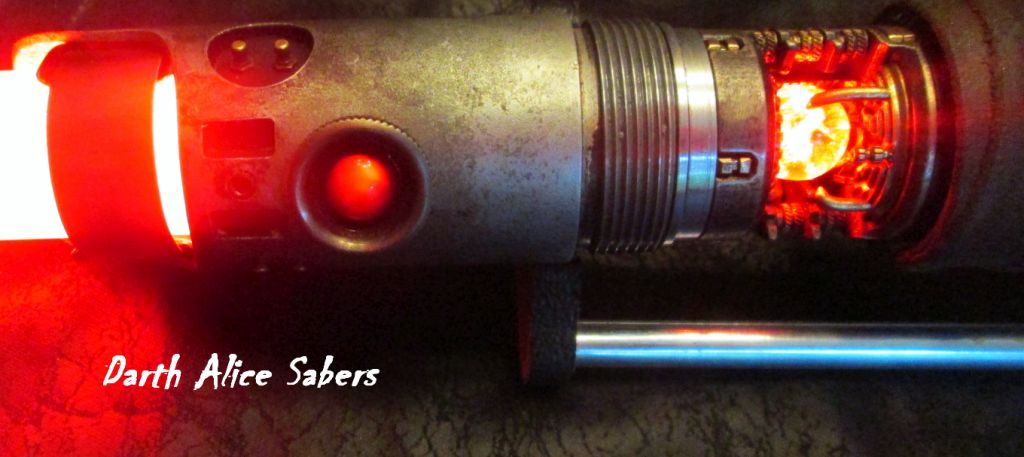

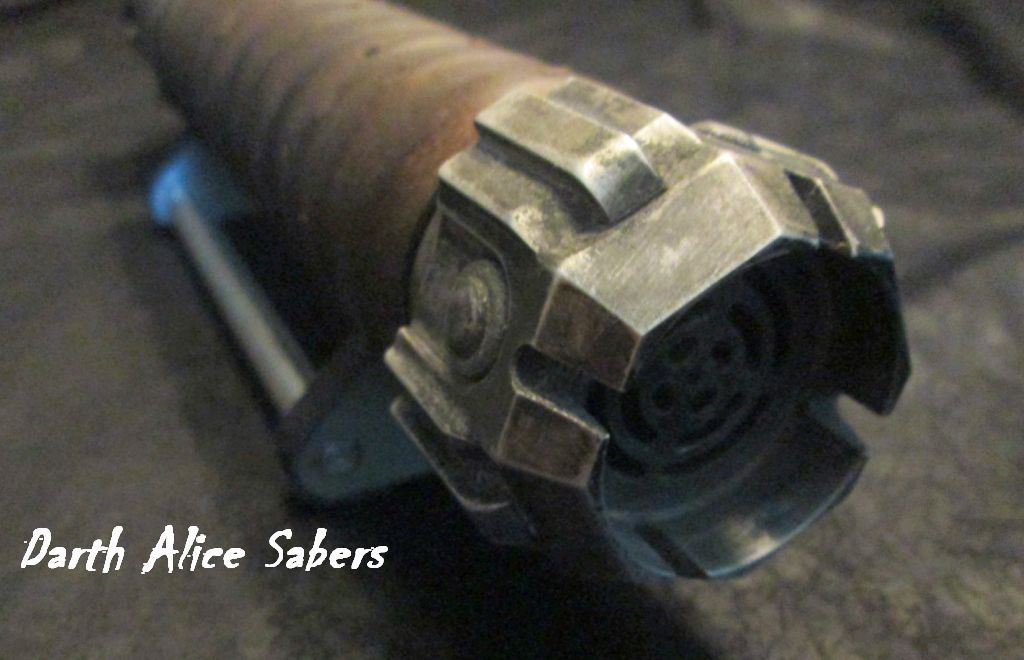

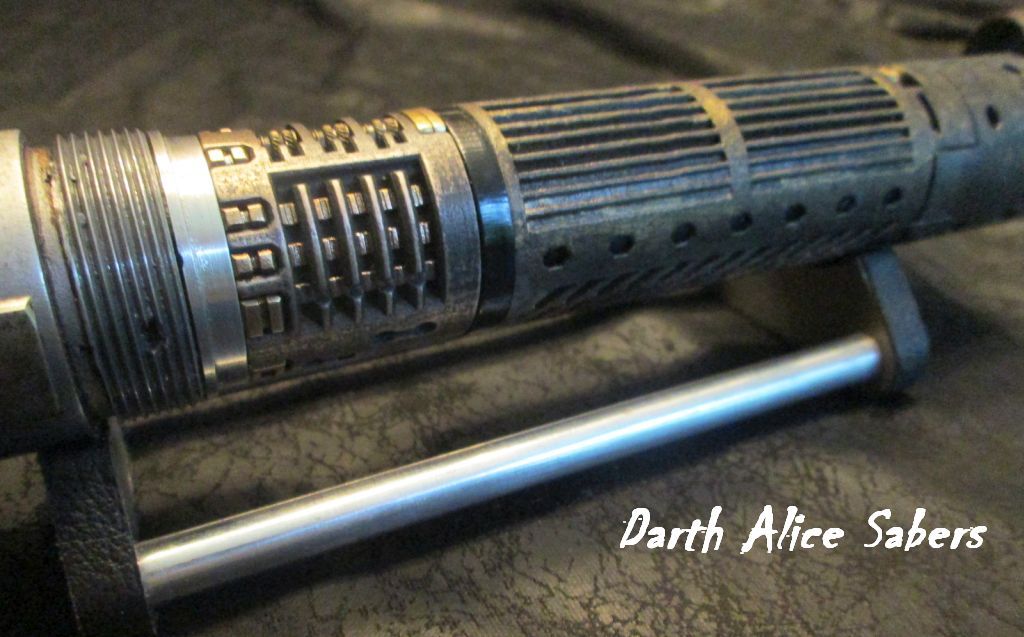

This is a saber that I built for Josh King, as he contacted me on Facebook asking me to build one similar to the one Aaron built. (Actually Aaron referred this guy to me, as he hasnt been taking on complete builds, with so many runs happening) Its mostly a well modded MHS piece along with a Solo's Hold TFU2 Pommel. I would say the hardest part was tracking down the emitter, which I had to procure 2nd hand. Thank you all again and MTFBWYA! Specs: Main Hilt MHS Graflex section, 7" extension, and Solos Hold Pommel Chassis: Darth Ryo's (GOTH3designs) 3d printed 1.25" model in strong and flexible, painted to look like aged bronze. Crystal chamber: 3d printed steel and brass, Darth Ryo's (GOTH3designs) with tritium marble (Heart-beat effect), 2 accent leds, and 1 5mm diffused RGB common anode diffused Board: Naigon Electronics Igniter2 Main LED: NECree Red, Green, Royal blue Battery: Solos Hold 18650 10 amp High discharge with 2.1 mm recharge port Speaker: 28mm Railmaster Wiring: 28-30 and 32 AWG PTFE teflon jacketed solid and strand core military spec. Thank you all again and MTFBWYA!
Great build!! I remember talking to a friend several yrs ago about 3D printers and back then he said ohh man what could you really build with those and there is no way those will take off. And I love seeing all the 3D stuff is that is out there and I love seeing these sabers. I basically found the youtube channel and watched most of the videos just blown away by your sabers and also learned a new thing about wiring last night after seeing the video on mil-spec wire
Dude, this is awesome. The way you put graflex bunny ears on an mhs part is genius ????

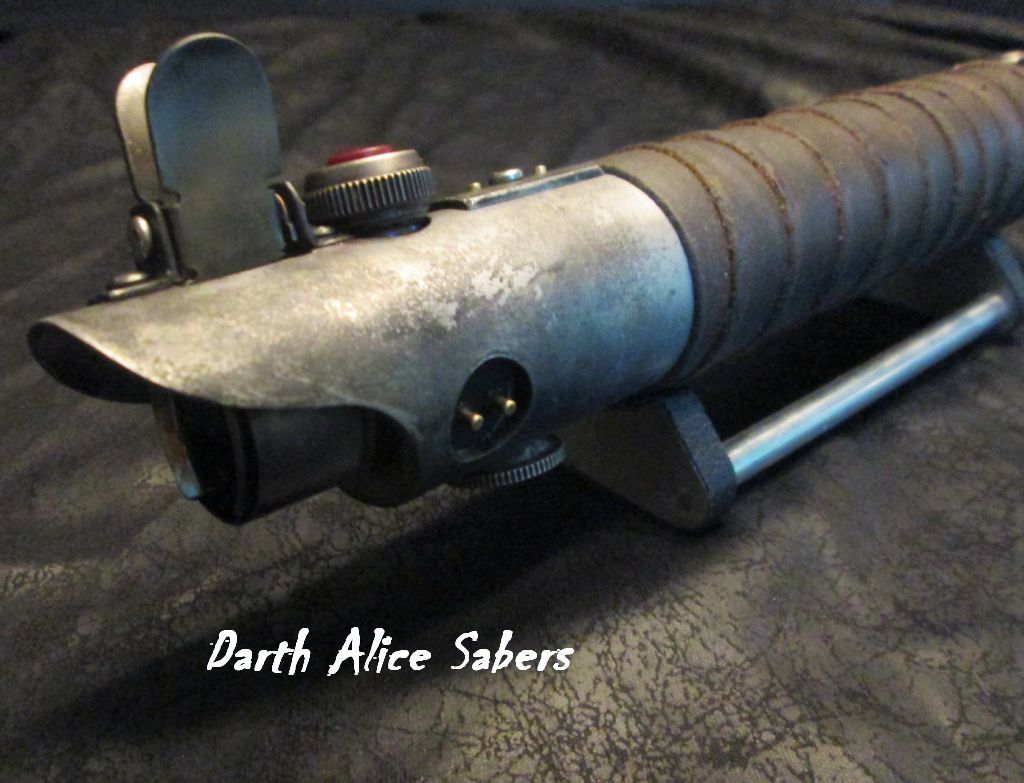

Thanks! Yes that is a real Graflex bulb retainer/bunny ears. A couple of years ago, Solos Hold and I worked out a couple of different ways to mount them to MHS and retain the look. This was originally his take on the MHS front unit.
