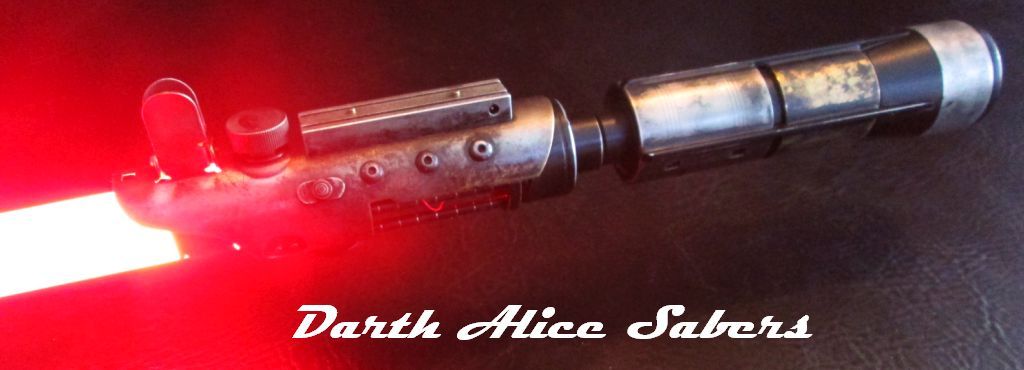

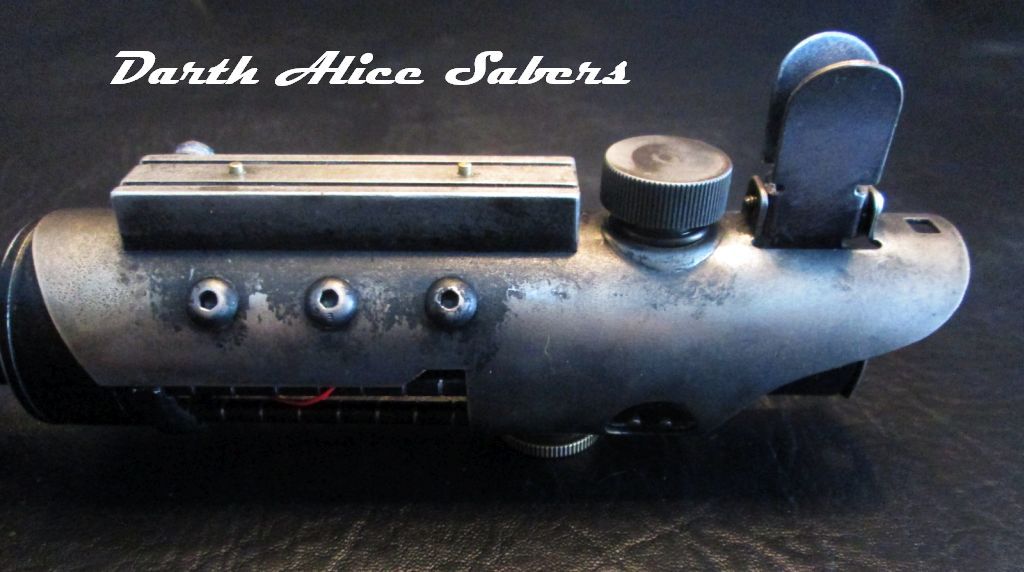

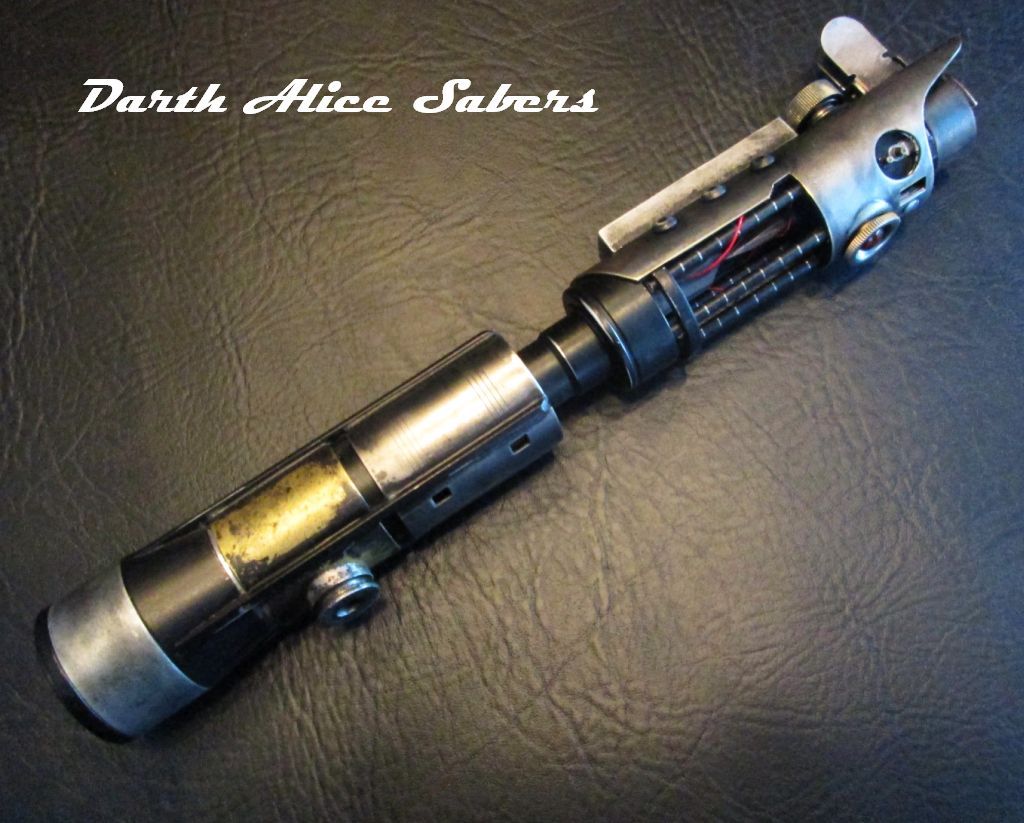

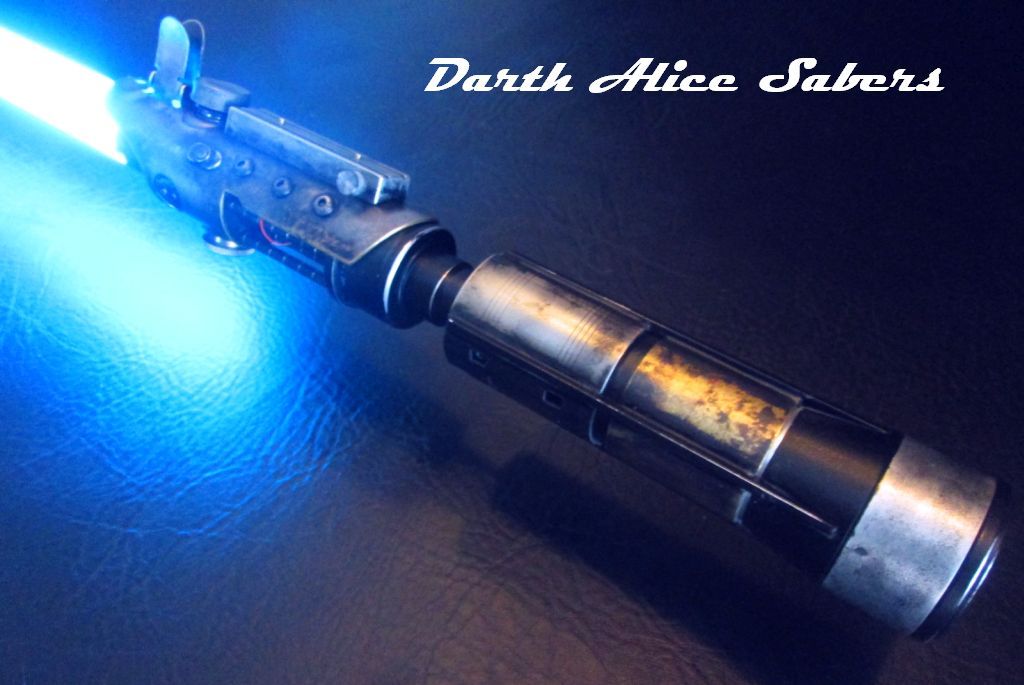

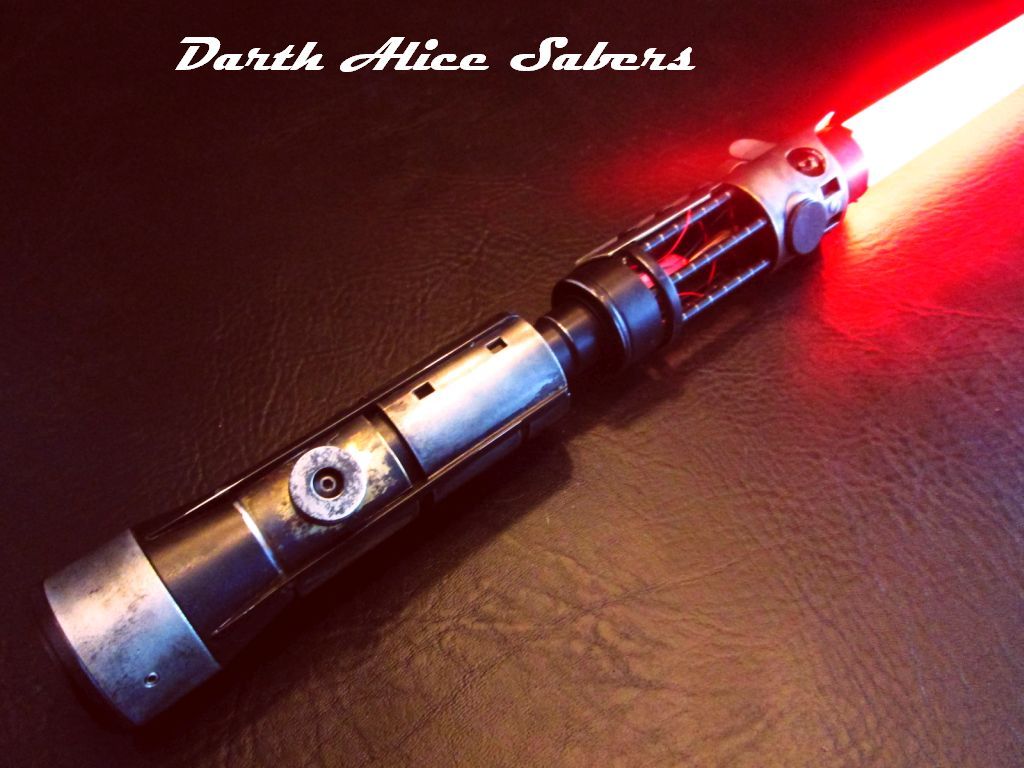

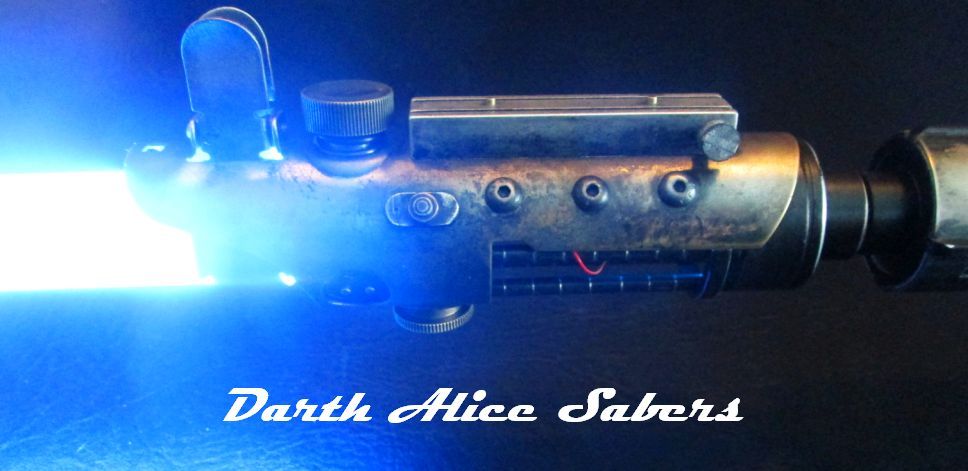

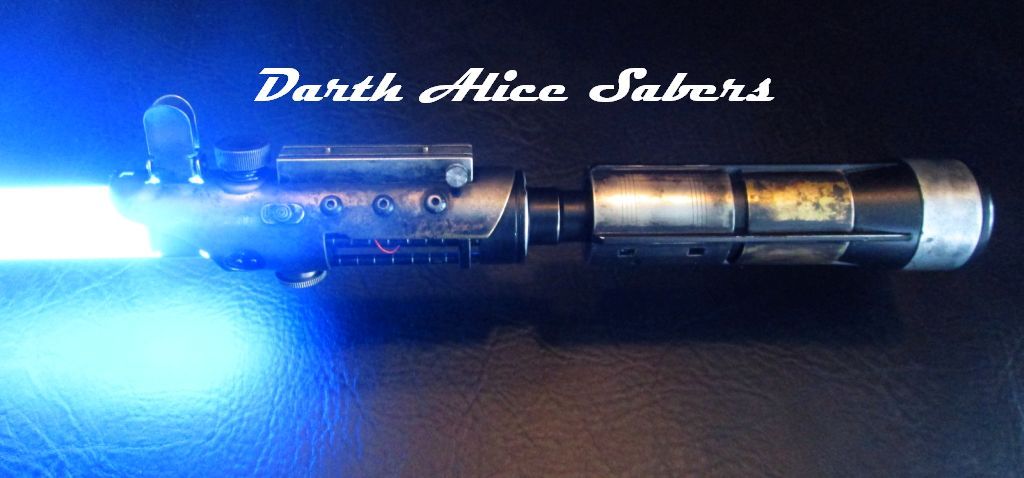

This is a saber built on overtime based upon the artwork in the video game "The Force Unleashed". The main focus beyond being a very strong and sturdy saber that could be used for dueling, was to have a functioning prop to look as close as possible as seen in the lightsaber modifications screen. The aging was done with the theme of the saber built from a collection of parts that Vader has stashed away over the years. This is a very special build, and motivated through many requests our shop gets for this model on a continual basis over the last few years.

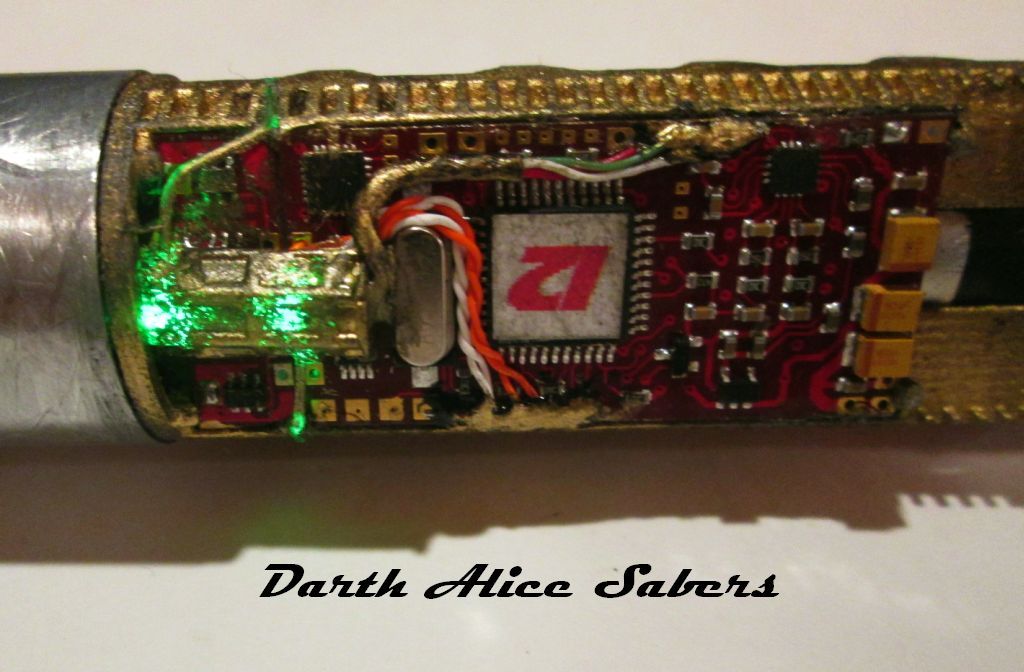

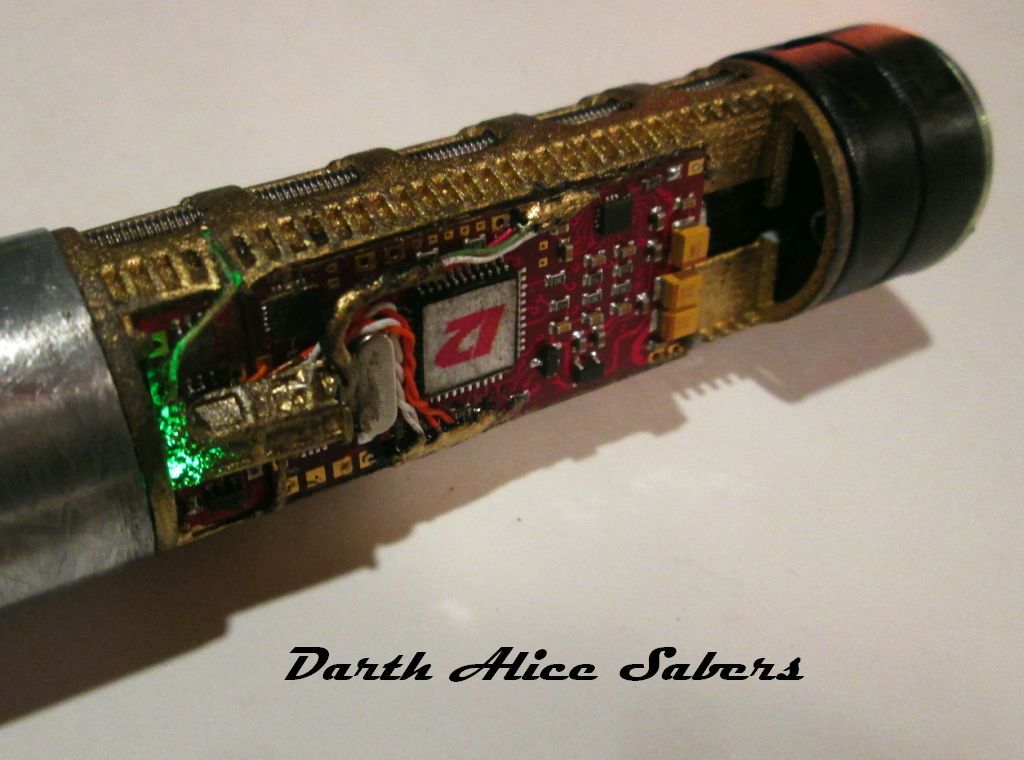

Specs: Graflex Replica 2.0 Korbanth scratch and dent as supplied by The Custom Saber shop, for the shroud, and replica clamp section. Length: 12.5" x 1.50", tapered up to 1.70" pommel section Spinal section/waist: T-6061 Billet with minimum .30" side wall for strength. Lower Hilt: T-6061 Billet Chassis: GOTH3designs 3d printed 18650/NEC combo chassis Board: Naigon Electronics Igniter2-R2 Main LED: Naigon Electronics NECree XP-E2 Copper Nova RGrB Accent LEDs: 2 Green smd leds in built in enclosure with 2 fiber optic lines Battery: Keeppower 18650 3400 Ma High discharge,Lithium Ion with 1.3mm recharge port built into the control box Switches: Brass Hat, smd Micro switches Speaker: 28mm Railmaster with custom mount and resonance chamber Wiring: 28-30-32 AWG PTFE Teflon coated, Military spec. strand and solid core. Font Package: Lord Blako's TFU1 game package, with fonts, blade colors, effects and music tracks tuned to each font corresponding with game level. Thank you once again to all my friends that were involved and those that helped motivate me to build this saber ....DA
Last Edit: Dec 15, 2016 15:00:06 GMT -5 by DarthAlice
Looks really great. Love the addition of the 2.0 parts. How did you secure the clamp without a box and hide the seam? Did you hide it under one of the grips, or something else? Impressive for sure.

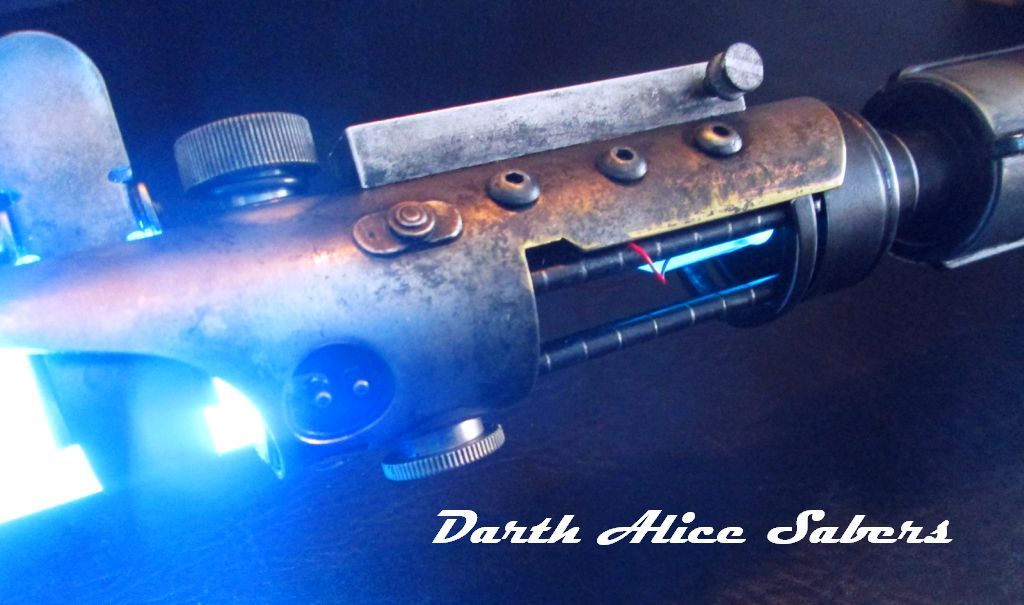

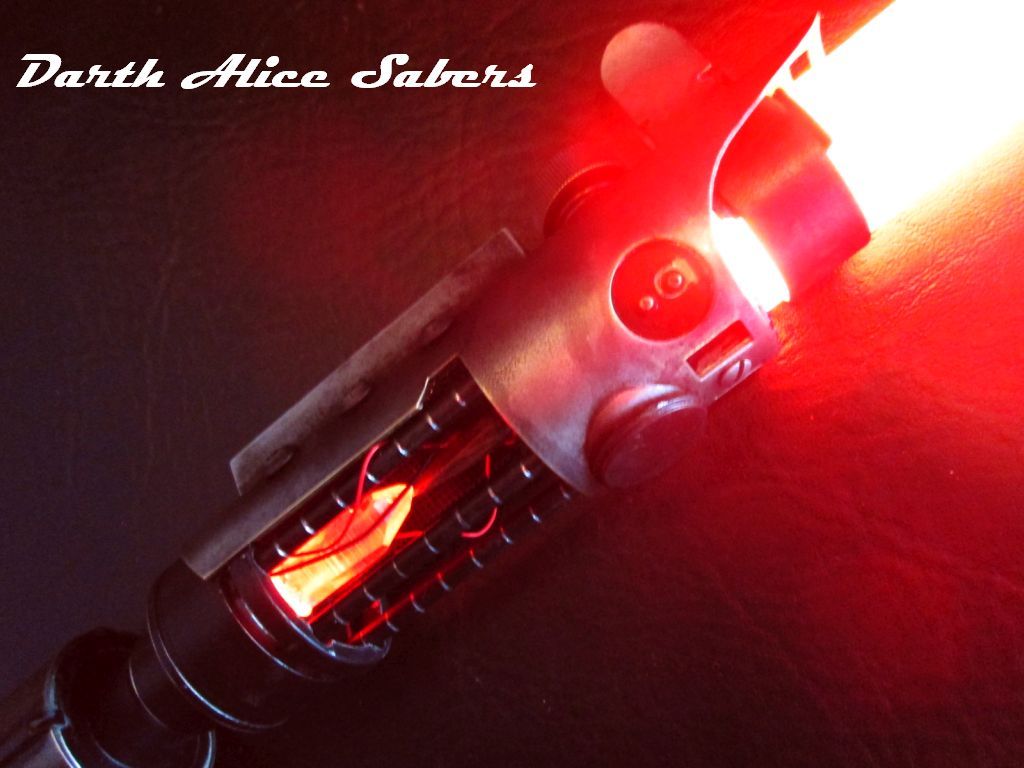

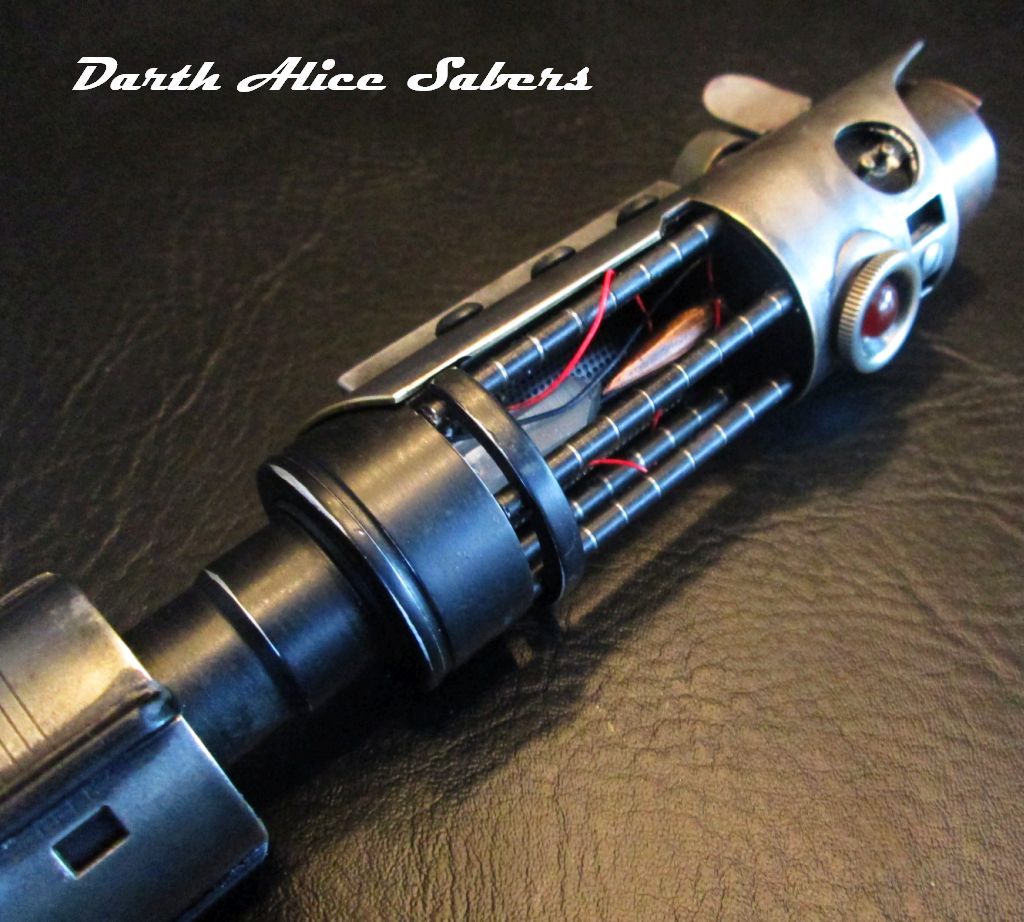

Thanks Scott, the clamp was a bit tricky in that I cut it into 4 quarters, lined 2 of the pieces with the rectangular opening up to the top of the lower hilt, and milled 2 holes for back venting of the speaker and also a small window on either side to see the accent leds working.Then some of the magical weld of the JB to secure the clamp sections, and another layer on the edges after the 1st epoxy application set. Paint and standard aging to hide the edges. I didnt take many pix of the reveal as its kind of boring, and with liquid electrical tape, and gold paint, its not the prettiest. (Here is the 1.15" Ryo chassis with machined delrin speaker mount)
Last Edit: Dec 18, 2016 7:05:55 GMT -5 by DarthAlice
Post by DarthAlice on May 17, 2017 14:37:36 GMT -5
Thanks guys I managed to build that one inside of a week during early last December. I have been getting alot of requests on these and have a few CAD files in the works for a potential run this year (the prototype is in process), as I keep coming back to this hilt in hopes of making it as accurate to video game and concept art shots.
